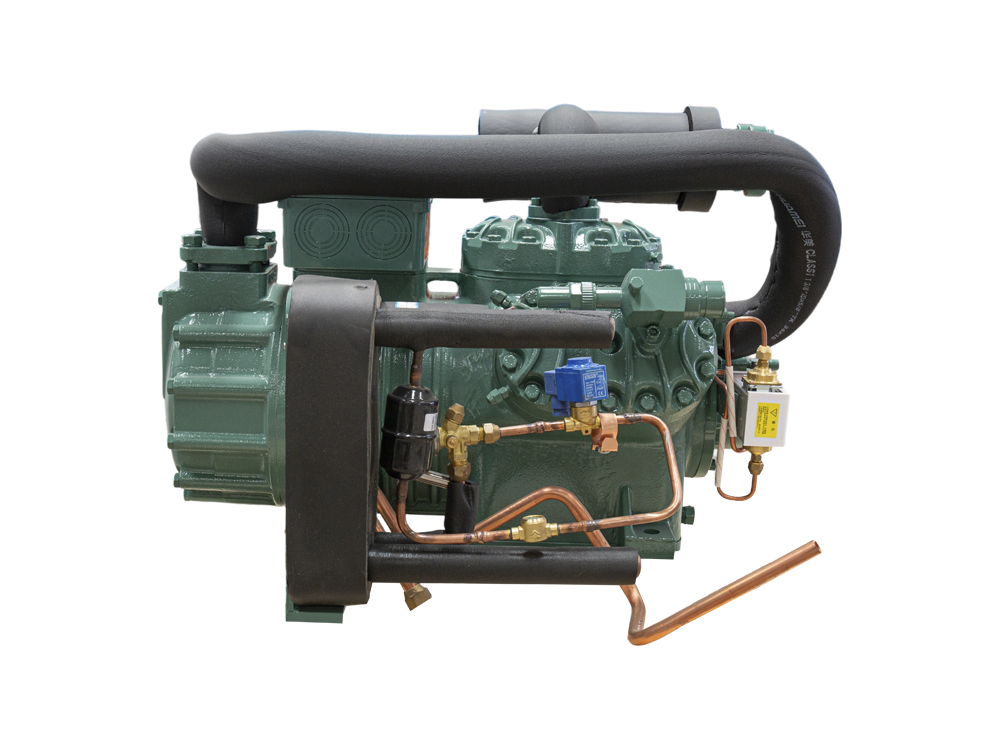

Bipolar compressor

Ang two-stage compressor ay isang positibong displacement compressor na gumagamit ng dalawang yugto ng proseso ng compression. Ang proseso ng pagtatrabaho nito ay nahahati sa dalawang yugto: ang low-pressure stage ay kumukuha at sa simula ay pinipiga ang gas, at pagkatapos ay ipinapasok ang gas sa high-pressure stage para sa huling compression upang makamit ang tamang presyur ng tambutso. Binabawasan ng disenyo na ito ang temperatura ng gas sa pamamagitan ng intercooling, sa gayon ay binabawasan ang pagkonsumo ng kuryente at pagpapabuti ng pagpapahusay sa panahon ng proseso ng compression. Ang mga bi-stage na compressor ay karaniwang angkop para sa medium at high-pressure na mga aplikasyon, at ang kanilang mga structural form ay kinabibilangan ng mga uri ng piston at screw. Dahil sa paggamit ng mga naka-stage na compression at intercooling na nagpapabuti, nakakatulong ang modelong ito na kontrolin ang temperatura ng tambutso at pagbutihin ang kahusayan ng enerhiya habang pinapanatili ang mas mataas na presyo ng output. Kasama sa mga karaniwang lugar ng mga aplikasyon para sa pang-industriyang gas treatment, high-pressure na supply ng gas at mga daloy ng proseso.

Katanungan
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
Paglalarawan Kaugnay na Produkto Katanungan
Compressor
uri 		Nominal na kapangyarihan ng motor
HP/KW 		Pag-aalis (50Hz)m³/h Bilang ng
Silindro
×Diameter
×Stroke(mm) 		Aspirator, tambutso balbula take-over Dami ng iniksyon ng langis(L) kapangyarihan
panustos
V/Ø/Hz 		Parameter ng kuryente Crankcase
pampainit
(220)W 		Langis
panustos
paraan 		Timbang (kabilang ang nagyeyelong langis)Kg
Mababa
Presyon 		Mataas
Presyon 		DL SL
Max operating kasalukuyang(A) Nagsisimula
kasalukuyan/rotor
naka-lock na kasalukuyang(A
S6G-12.2 12/9.3 42.3 27 6×Φ65×55 28 1-1/8" 35  1-3/8" 3.5 380~420YY/3/50 440YY/3/60 24 69/113 120 Sapilitang pagpapadulas 180
S6J-16.2 16/12.5 63.5 31.8 6×Φ65×55 28  1-1/8" 42  1-5/8" 3.5 37 81/132 209
S6H-20.2 20/15 73.6 36.9 6×Φ70×55 28  1-1/8" 42  1-5/8" 3.5 37 97/158 220
S6G-25.2 25/19 84.5 42.3 6×Φ75×55 28  1-1/8" 42  1-5/8" 3.5 45 116/193 233
S6F-30.2 30/22 101.3 50.5 6×Φ82×55 28  1-1/8" 42  1-5/8" 3.5 53 135/220 234

Uri ng compressor Cond temp (°C) Kapasidad ng paglamig Qo(W) pagkonsumo ng kapangyarihan Pe(kW)
Pagsingaw na temperatura(°C )
-20 -25 -30 -35 -40 -45 -50 -20 -25 -30 -35 -40 -45 -50
S4G-12.2 30 21.35 17.73 14.55 11.77 9.34 7.24 5.41 8.82 8.22 7.63 7.03 6.43 5.84 5.24
35 20.95 17.43 14.3 11.56 9.15 7.06 5.23 9.49 8.83 8.17 7.51 6.85 6.82 5.53
40 20.6 17.14 14.06 11.35 8.96 6.88 5.04 10.16 9.43 8.71 7.99 7.26 6.54 5.81
45 20.25 168.5 138.2 11.14 8.78 6.69 10.82 10.04 9.25 8.46 7.68 6.89
50 19.92 16.57 13.59 10.94 8.58 11.47 10.63 9.78 8.93 8.09
55 19.59 16.3 13.36 10.73 12.09 11.19 10.28 9.38
S6J-16.2 30 30.65 25.6 21.15 17.23 13.77 10.7 7.95 13.34 12.26 11.17 10.08 8.98 7.9 6.82
35 30.3 25.35 20.95 17.05 13.59 10.49 7.66 14.26 13.09 11.9 10.72 9.53 8.36 7.19
40 30 25.1 20.75 16.87 13.42 10.3 7.41 15.19 13.91 12.63 11.35 10.07 8.79 7.52
45 29.65 24.85 20.55 16.71 13.26 10.11 16.11 14.73 13.35 11.97 10.58 9.17
50 29.35 24.6 20.35 16.57 13.13 17.03 15.53 14.05 12.57 11.05
55 29.1 24.4 20.2 16.46 17.94 16.33 14.74 13.14
S6H-20.2 30 35.5 29.7 24.5 19.97 15.96 12.4 9.18 15.46 14.21 12.95 11.68 10.41 9.15 7.91
35 35.15 29.4 24.3 19.76 15.75 12.16 8.88 16.53 15.17 13.79 12.42 11.05 9.69 8.34
40 34.75 29.1 24.05 19.56 15.56 11.94 8.59 17.61 16.12 14.64 13.15 11.67 10.19 8.71
45 34.4 28.8 23.8 19.37 15.37 11.72 18.68 17.07 15.47 13.87 12.26 10.63
50 34.05 28.5 23.6 19.21 15.22 19.74 18 16.29 14.56 12.8
55 33.7 28.3 23.4 19.07 20.79 18.92 17.09 15.23
S6G-25.2 30 40.8 34.05 28.15 22.9 18.32 14.23 10.54 17.75 16.31 14.86 13.41 11.95 10.51 9.08
35 40.35 33.75 27.9 22.7 18.09 13.96 10.2 18.98 17.41 15.84 14.26 12.68 11.12 9.57
40 39.9 33.4 27.6 22.45 17.86 13.7 9.86 20.21 18.51 16.81 15.1 13.4 11.7 10
45 39.5 33.05 27.35 22.25 17.65 13.46 21.44 19.6 17.76 15.92 14.07 12.2
50 39.1 32.75 27.1 22.05 17.47 22.66 20.67 18.7 16.72 14.7
55 38.7 32.45 26.9 21.9 23.87 21.73 19.62 17.48
S6F-30.2 30 48.8 40.75 33.7 27.4 21.9 17.03 12.61 21.23 19.52 17.78 16.04 14.3 12.57 10.86
35 48.25 40.35 33.35 27.15 21.65 16.71 12.2 22.71 20.83 18.95 17.06 15.18 13.31 11.45
40 47.75 39.95 33 26.85 21.35 19.39 11.79 24.18 22.15 20.11 18.07 16.03 13.99 11.96
45 47.25 39.55 32.7 26.6 21.1 16.1 25.66 23.45 21.25 19.05 16.84 14.6
50 46.75 39.2 32.45 26.4 20.9 27.12 24.73 22.37 20.01 17.59
55 46.3 38.85 32.2 26.2 28.56 25.99 23.47 20.92
Uri ng compressor Cond temp (°C) Kapasidad ng paglamig Qo(W) pagkonsumo ng kapangyarihan Pe(kW)
Pagsingaw na temperatura(°C )
-20 -25 -30 -35 -40 -45 -50 -20 -25 -30 -35 -40 -45 -50
S4G-12.2 30 18.37 14.95 12.02 9.53 7.43 5.67 4.18 8.32 7.66 7.01 6.37 5.75 5.16 4.61
35 17.6 14.31 11.5 9.11 7.08 5.37 3.92 8.87 8.16 7.45 6.76 6.08 5.42 4.79
40 16.83 13.68 10.98 8.68 6.73 5.07 3.65 9.45 8.68 7.92 7.16 6.42 5.69 4.97
45 16.06 13.04 10.46 8.26 6.38 4.77 10.06 9.22 8.39 7.56 6.74 5.93
50 15.29 12.42 9.95 7.83 6.02 10.7 9.77 8.85 7.93 7.03
55 14.52 11.78 9.43 7.41 11.37 10.31 9.27 8.26
S6J-16.2 30 27.9 22.75 18.35 14.57 11.34 8.57 6.17 10.94 10.32 9.62 8.83 7.93 6.92 5.78
35 26.8 21.85 17.62 13.98 10.85 8.15 5.79 11.88 11.14 10.33 9.41 8.4 7.26 6.01
40 25.7 20.95 16.89 13.39 10.37 7.74 5.42 12.81 11.99 11.06 10.02 8.87 7.58 6.17
45 24.55 20.05 16.16 12.81 9.9 7.35 13.74 12.84 11.81 10.65 9.33 7.85
50 23.4 19.14 15.45 12.24 9.44 14.64 13.69 12.57 11.28 9.78
55 22.3 18.24 14.74 11.69 15.52 14.52 13.34 11.92
S6H-20.2 30 32.35 26.4 21.25 16.89 13.14 9.93 7.15 12.68 11.96 11.15 10.23 9.19 8.02 6.7
35 31.05 25.35 20.4 16.2 12.58 9.45 6.71 13.77 12.92 11.97 10.91 9.73 8.42 6.96
40 29.75 24.3 19.57 15.52 12.02 8.98 6.28 14.85 13.89 12.82 11.62 10.28 8.79 7.15
45 28.45 23.25 18.73 14.84 11.47 8.51 15.92 14.88 13.69 12.34 10.81 9.1
50 27.15 22.2 17.9 14.19 10.95 16.97 15.86 14.57 13.07 11.33
55 25.8 21.15 17.09 13.55 17.99 16.83 15.46 13.81
S6G-25.2 30 37.15 30.3 24.4 19.39 15.09 14.41 8.21 14.55 13.73 12.8 11.75 10.55 9.21 7.69
35 35.65 29.1 23.45 18.6 14.44 10.85 7.7 15.81 14.83 13.74 12.53 11.17 9.67 7.99
40 34.15 27.9 22.5 17.82 13.8 10.31 7.21 17.05 15.95 14.72 13.34 11.8 10.09 8.21
45 32.65 26.7 21.5 17.04 13.17 9.78 18.28 17.08 15.72 14.17 12.42 10.45
50 31.15 25.45 20.55 16.29 12.57 19.59 18.21 16.73 15.01 13.01
55 29.65 24.3 19.62 15.56 20.65 19.32 17.75 15.86
S6F-30.2 30 44.45 36.25 29.2 23.2 18.06 13.65 9.82 17.41 16.43 15.32 14.06 12.63 11.02 9.2
35 42.7 34.8 28.05 22.25 17.28 12.98 9.22 18.91 17.74 16.44 14.99 13.37 11.56 9.56
40 40.9 33.35 26.9 21.3 16.51 12.22 8.63 20.4 19.09 17.61 15.96 14.12 12.07 9.82
45 39.1 31.9 25.7 20.4 15.76 11.7 21.87 20.44 18.8 16.95 14.85 12.5
50 37.25 30.4 24.6 19.49 15.04 23.31 21.79 20.02 17.96 15.57
55 35.45 29.05 23.5 18.61 24.71 23.11 21.23 18.97
Uri ng compressor Cond temp (°C) Kapasidad ng pagpapalamig Qo(KW) pagkonsumo ng kapangyarihan Pe(kW)
Pagsingaw na temperatura(°C )
-25 -30 -35 -40 -45 -50 -55 -60 -65 -70 -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
S4G-12.2 30 19.49 16.83 14.28 11.86 9.65 7.68 5.98 4.57 3.41 2.49 9.74 9.06 8.35 7.61 6.85 6.1 5.35 4.62 3.92 3.27
35 19.26 16.57 14 11.6 9.43 7.51 5.87 4.48 3.34 2.42 10.39 9.64 8.86 8.05 7.22 6.4 5.59 4.81 4.06 3.37
40 18.92 16.23 13.69 11.34 9.22 7.36 5.76 4.4 3.25 11.05 10.23 9.37 8.49 7.6 6.72 5.85 5.01 4.22
45 18.52 15.86 13.37 11.08 9.03 7.23 5.66 4.29 11.7 10.82 9.9 8.96 8 7.05 6.12 5.22
50 18.07 15.48 13.06 10.85 8.86 7.1 5.54 12.35 11.4 10.44 9.44 8.42 7.41 6.41
55 17.61 15.1 12.77 10.64 8.71 6.97 12.9 11.98 10.99 9.94 8.87 7.78
S6J-16.2 30 27.6 23.75 20.15 16.81 13.76 11.03 8.66 6.65 4.99 3.66 14.13 12.93 11.76 10.61 9.49 8.41 7.37 6.4 5.49 4.65
35 27.1 23.3 19.74 16.46 13.46 10.8 8.49 6.53 4.9 3.58 15.05 13.74 12.48 12.24 10.06 8.91 7.82 6.78 5.8 4.89
40 26.5 22.8 19.34 16.11 13.18 10.58 8.33 6.41 4.79 16 14.58 13.21 11.9 10.63 9.42 8.26 7.16 6.1
45 26 22.35 18.92 15.77 12.92 10.38 8.19 6.27 16.94 15.42 13.96 12.56 11.21 9.93 8.69 7.51
50 25.5 21.9 18.52 15.44 12.67 10.21 8.02 17.83 16.23 14.68 13.2 11.78 10.41 9.1
55 21.5 18.16 15.15 12.45 10.02 16.97 15.37 13.82 12.33 10.87
S6H-20.2 30 31.9 27.45 23.3 19.44 15.91 12.76 10.02 7.69 5.77 4.23 16.43 15.02 13.64 12.3 11 9.76 8.57 7.44 6.4 5.4
35 31.3 26.95 22.85 19.03 15.56 12.48 9.8 7.56 5.67 4.14 17.47 15.95 14.47 13.04 11.66 10.33 9.07 7.86 6.72 5.66
40 30.6 26.35 22.35 18.61 15.23 12.24 9.64 7.42 5.54 18.53 16.9 15.32 13.79 12.33 10.92 9.57 8.29 7.07
45 29.9 25.75 21.85 18.2 14.92 12.01 9.47 7.26 19.6 17.85 16.17 14.55 12.99 11.5 10.07 8.7
50 29.35 25.2 21.35 17.81 14.63 11.8 9.28 20.63 18.79 17.01 15.3 13.65 12.07 10.55
55 24.7 20.9 17.45 14.36 11.57 19.69 17.83 16.03 14.29 12.61
S6G-25.2 30 36.2 31.3 26.6 22.25 18.22 14.62 11.48 8.83 6.63 4.87 18.84 17.27 15.71 14.16 12.65 11.19 9.8 8.49 7.29 6.2
35 35.6 30.7 26.1 21.75 17.81 14.3 11.25 8.66 6.51 4.76 20.02 18.32 16.64 15 13.41 11.87 10.41 9.02 7.72 6.51
40 34.9 30.1 25.5 21.3 17.42 14 11.04 8.5 6.35 21.27 19.4 17.6 15.85 14.16 12.55 11 9.52 8.13
45 34.1 29.4 24.95 20.8 17.06 13.74 10.84 8.31 22.52 20.5 18.56 16.7 14.92 13.2 11.56 10
50 33.45 28.75 24.35 20.35 16.72 13.49 10.62 23.71 21.58 19.5 17.56 15.67 13.85 12.1
55 32.9 28.15 23.8 19.92 16.41 13.23 24.78 22.61 20.49 18.42 16.42 14.47
S6F-30.2 30 43.4 37.4 31.75 26.5 21.7 17.42 13.69 10.54 7.92 5.8 22.53 20.65 18.78 16.94 15.15 13.42 11.77 10.2 8.74 7.4
35 42.5 36.6 31.05 25.9 21.2 17.03 13.42 10.37 7.78 5.68 23.85 21.86 19.89 17.94 16.04 14.21 12.45 10.78 9.23 7.8
40 41.5 35.7 30.3 25.3 20.7 16.68 13.17 10.15 7.59 25.2 23.1 21.01 18.96 16.95 15 13.14 11.37 9.72
45 40.45 34.8 29.55 24.7 20.3 16.36 12.93 9.92 26.59 24.37 22.16 19.98 17.86 15.8 13.83 11.96
50 39.5 34 28.85 24.1 19.87 16.06 12.65 28.07 25.69 23.33 21.01 18.75 16.57 14.49
55 38.8 33.25 28.2 23.6 19.4 15.74 29.64 27.06 24.51 22.03 19.63 17.32

Uri ng compressor Cond temp (°C) Kapasidad ng pagpapalamig Qo(KW) pagkonsumo ng kapangyarihan Pe(kW)
Pagsingaw na temperatura(°C )
-25 -30 -35 -40 -45 -50 -55 -60 -65 -70 -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
S4G-12.2 30 15.86 13.27 10.91 8.8 6.96 5.39 4.09 3.05 2.22 1.59 9.02 8.28 7.55 6.83 6.11 5.4 4.69 3.98 3.27 2.57
35 15.06 12.54 10.27 8.26 6.52 5.05 3.84 2.86 2.09 1.48 9.45 8.66 7.88 7.11 6.34 5.57 4.82 4.07 3.32 2.59
40 14.16 11.76 9.61 7.71 6.09 4.72 3.57 2.68 1.93 9.87 9.04 8.21 7.38 6.56 5.75 4.95 4.15 3.37
45 13.2 10.94 8.92 7.17 5.66 4.4 3.35 2.47 10.29 9.42 8.54 7.67 6.8 5.94 5.08 4.25
50 12.18 10.08 8.23 6.62 5.24 4.07 3.08 10.72 9.81 8.89 7.97 7.05 6.14 5.24
55 11.1 9.2 7.52 6.06 4.8 3.72 11.15 10.21 9.25 8.3 7.34 6.38
S6J-16.2 30 23.95 19.94 16.35 13.19 10.44 8.1 6.15 4.57 3.33 2.37 13.07 11.7 10.43 9.25 8.17 7.18 6.27 5.44 4.69 4
35 22.65 18.79 15.38 12.38 9.78 7.57 5.77 4.3 3.12 2.21 13.63 12.22 10.91 9.68 8.54 7.48 6.5 5.6 4.78 4.04
40 21.25 17.6 14.28 11.56 9.13 7.09 5.4 4.02 2.9 14.17 12.77 11.42 10.15 8.95 7.81 6.76 5.78 4.89
45 19.76 16.36 13.36 10.74 8.49 6.6 5.02 3.72 14.73 13.33 11.96 10.64 9.38 8.18 7.04 5.98
50 18.23 15.09 12.32 9.91 7.85 6.1 4.63 15.3 13.9 12.51 11.15 9.83 8.56 7.34
55 16.63 13.78 11.26 9.07 7.19 5.58 15.87 14.47 13.07 11.67 10.3 8.95
S6H-20.2 30 27.7 23.1 18.96 15.3 12.11 9.38 7.13 5.3 3.85 2.74 15.36 13.69 12.15 10.73 9.44 8.27 7.23 6.32 5.53 4.86
35 26.2 21.8 17.84 14.36 11.34 8.79 6.69 4.98 3.62 2.56 16.04 14.33 12.73 11.26 9.9 8.67 7.56 6.57 5.71 4.97
40 24.6 20.4 16.68 13.4 10.59 8.22 6.26 4.66 3.36 16.7 14.96 13.32 11.79 10.38 9.08 7.89 6.82 5.87
45 22.9 18.97 15.49 12.45 9.84 7.65 5.82 4.31 17.35 15.58 13.91 12.34 10.88 9.51 8.24 7.08
50 21.1 17.49 14.28 11.49 9.1 7.07 5.37 18 16.21 14.52 12.92 11.41 9.98 8.63
55 19.25 15.95 13.04 10.51 8.33 6.47 18.66 16.85 15.14 13.52 11.98 10.5
S6G-25.2 30 31.8 26.5 21.75 17.57 13.9 10.78 8.18 6.09 4.43 3.15 17.92 15.88 14.03 12.35 10.84 9.49 8.3 7.25 6.34 5.56
35 30.1 25 20.5 16.48 13.02 10.1 7.68 5.72 4.16 2.94 18.51 16.49 14.63 12.91 11.35 9.93 8.66 7.54 6.56 5.72
40 28.25 23.4 19.14 15.39 12.15 9.43 7.18 5.34 3.86 19.12 17.14 15.27 13.52 11.89 10.4 9.04 7.83 6.77
45 26.3 21.8 17.78 14.29 11.3 8.78 6.68 4.95 19.74 17.81 15.95 14.16 12.47 10.89 9.43 8.12
50 24.3 20.05 16.39 13.19 10.44 8.12 6.16 20.4 18.51 16.63 14.81 13.05 11.38 9.82
55 22.1 18.31 14.97 12.06 9.57 7.42 21.11 19.21 17.32 15.45 13.63 11.87
S6F-30.2 30 38.05 31.7 26.05 21 16.62 12.88 9.79 7.28 5.3 3.76 21.26 18.81 16.61 14.64 12.9 11.37 10.02 8.86 7.85 7
35 36 29.95 24.5 19.71 15.57 12.07 9.18 6.84 4.98 3.51 22.11 19.66 17.41 15.37 13.53 11.88 10.42 9.13 8.02 7.08
40 33.8 28 22.9 18.39 14.53 11.28 8.59 6.4 4.62 22.95 20.53 18.26 16.15 14.2 12.42 10.82 9.41 8.18
45 31.45 26.05 21.25 17.08 13.51 10.5 8 5.92 23.82 21.42 19.12 16.94 14.89 13 11.26 9.71
50 28.95 24 19.59 15.77 12.49 9.71 7.37 24.72 22.31 19.98 17.74 15.61 13.61 11.76
55 26.4 21.9 17.89 14.43 11.44 8.88 25.67 23.19 20.8 18.52 16.34 14.27
